 USB Remote Switch






  PIC 18F2550 Remote USB Switch:




FD-RUS-0113



A Project by:
Frank/K7SFN,
Tony/I2TZK,
Dinesh/VU2FD




With all of the interest in Remote station control & operation these days, it would be nice to have a simple, inexpensive,  method to remotely control  items in your hamshack.

The FoxDelta RUS-1112 Remote USB Switch utilizes an 18F2550 PIC, connected to a ULN 2803 Buffer, driving eight small PCB Relays. Each Form A relay circuit is rated for 30vdc/2A and 120vac/1A. Power is supplied by your computer’s USB port . No external power source is required.

Four onboard Dual LEDs provide a local indication of the relay status’. In addition, a manual Reset push button is located on the rear of the unit, should it ever be needed.

Installation is straight forward; Simply, plug the “Remote USB Switch” to an unused USB port on your computer, load a small application program made by Tony/I2TZK to your Desktop, and you are ready to go.

The small PC application program graphically depicts the status of each of the switch positions. Internal memory in the Remote USB Switch remembers switch settings even when the application program is closed, or in the event of a power failure.  If a power failure occurs, the switch settings will be restored when power returns. Most PCs continue to provide USB power even when turned off.

Remote Control of your computer can easily be accomplished using either “TEAMVIEWER” or  “LOGMEIN”, which have Free download versions.  These programs allow you to remotely access your home PC and the FoxDelta Remote USB Switch application program.

The  applications for use of this device are almost limitless and basically whatever  the user can dream up. For example; Integrating the switch with a commercial antenna switch will let you change antennas from anywhere you happen to be.  Using the small reed relays to control larger relays would allow you to turn on/off power supplies, equipment, control audio control circuits, and many other devices.

Hope you enjoy your NEW Fox Delta “Remote USB Switch”

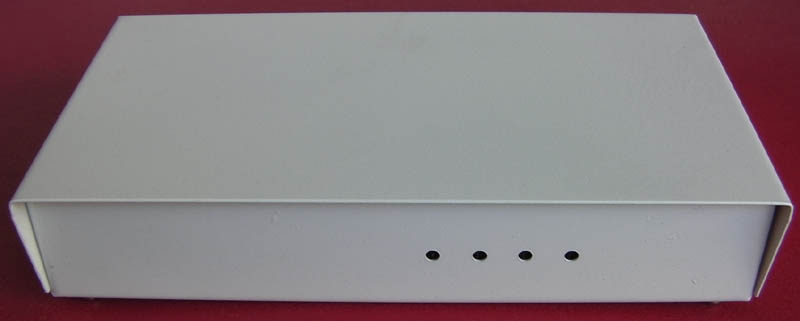

Completed PIC18F2550 Remote USB Switch:

Click image to enlarge

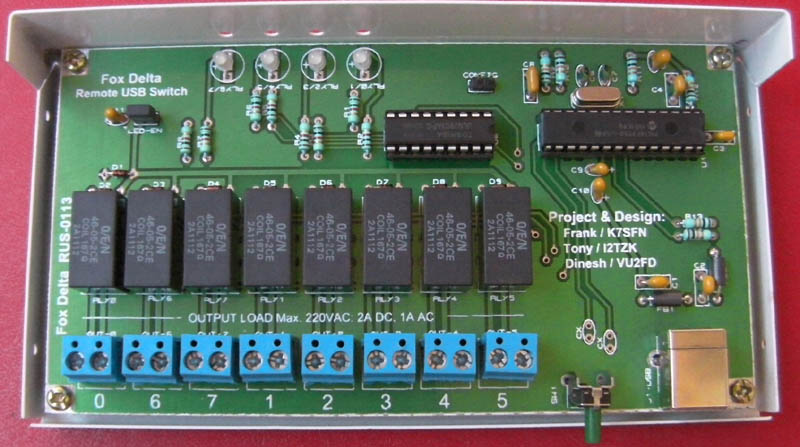

Top View of USB Switch:

Click image to enlarge
 FD-RUS-1212 Doc & Schematic:


Technical Info Doc

Schematic & Parts List

Schematic JPG




 Firmware/Software Download and Data Sheets

PIC18F2550 FW 1.02

PC Software by Tony/I2TZK




PIC18F2550

ULN2803

OEN-46-05-2C





  Buy on-line
